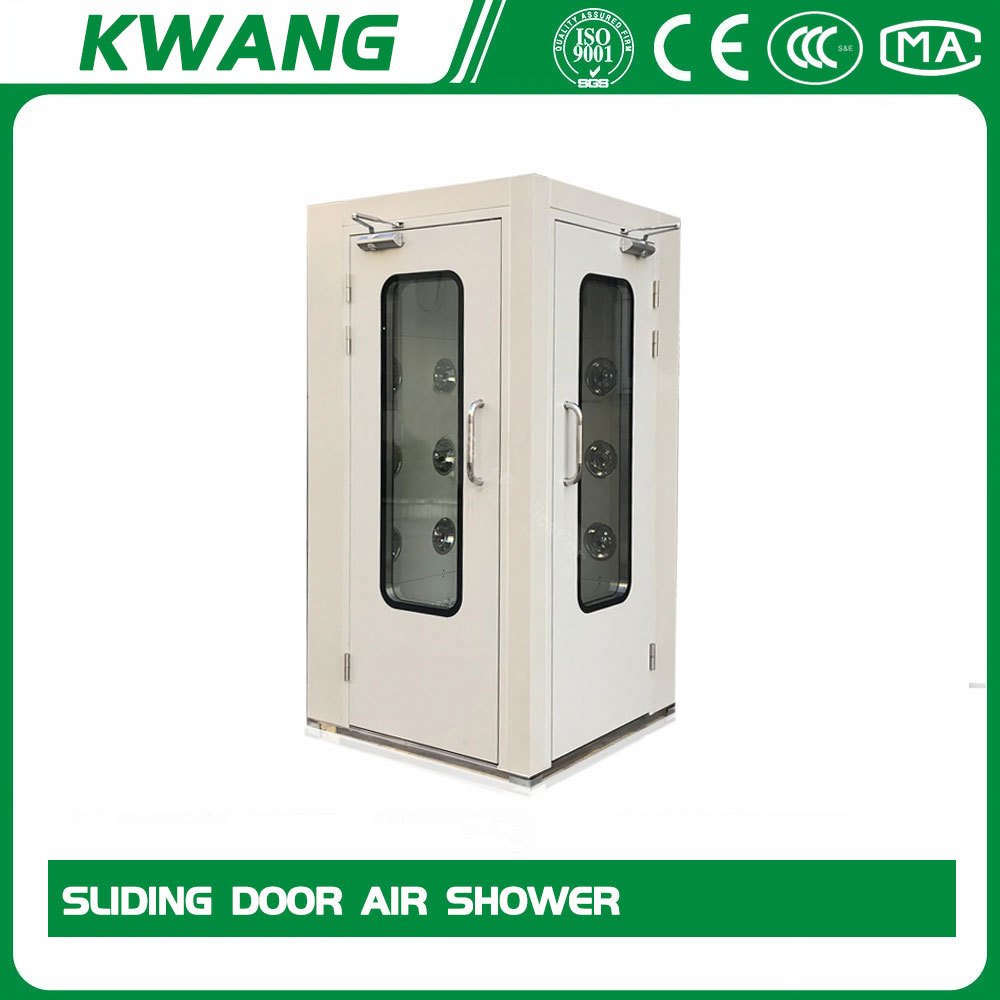

Sliding Door Air Shower

Sliding Door Air Shower

- Air Shower BasicsAir shower series product is a kind of partial purifying equipment of strong universality. With novel structure, beautifulappearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people ...

Air Shower Basics

Air shower series product is a kind of partial purifying equipment of strong universality. With novel structure, beautiful
appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.

It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank. After filtered with
high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower. The nozzle angel is adjustable. It
can effectively blow out dust attached on people and goods’ surface. The blown dust enters into primary-efficiency air filter
again, circulating so and reaching to the aim of air shower.


Sliding Door Air Shower

- Kwang Air Showers

Designed with the dimension of 1400×1000×2100mm, the double person air shower room is actually composed by two single person products. The double person product and the single person product have no difference in function except for the applicable number of people and the volume. The material for interior and exterior body of the product is SUS304 stainless steel. The body of the product is equipped with multiple filters for getting excellent filtration effect. Users can also choose the product with high efficiency particulate air filter (HEPA filter). There are total 24 nozzles with the mouth diameter of 30mm set on the two sides of the product. These nozzles can achieve air shower for two to four persons simultaneously.

Meanwhile, we can provide the air shower room with infrared sensor system and link the system with the doors of the product and clean room through the electronic interlocking device. When the working staff enters into the product, the infrared sensor system can sense that and start to work. After finishing the air shower, the other door can be opened automatically to allow the purified working staff entering into the clean room. In addition, we can also supply the product for cargo air shower if customers have the needs.


Sliding Door Air Shower

Sliding Door Air Shower

Sliding Door Air Shower

- Stainless Steel Standard Two Person Air Shower Specification

1.Model: KW-AS-1 (Suitable for 1 people)

2.Material: SUS304, thickness: 1.2mm

3.External Dimension(mm): 1400(W)*1000(D)*2100(H)

4.Internal Dimension (mm): 800(W)*900(D)*1960(H)

5.Nozzle Number: 12(two-side blowing)

6.Nozzle Material: stainless steel

7.Diameter of Nozzle Mouth: Φ30mm

8.Air Velocity at the Nozzle: ≥25m/s

9.Filters: pre-filter*2pcs, HEPA filter*2pcs, filters are produced in Class 10,000 clean room

10.Efficiency:≥99.995% (sodium flame method), particle size≥0.3μm

11.Lamp: LED lamp*1pc

12.Air Shower Mode: automatic and manual

13.Fan: low-noise, high-pressure, centrifugal fan*2pcs, Power: 1.5KW

14.Shower Time: 0-99s adjustable

15.Control Panel: New touch-screen panel, Electronic Interlocking

16.Power Supply: 380V, 50Hz, Three-phase five-line

17.Package: wooden case

18.Door: Manual Door (Pull the handle to open)


Stainless Steel Standard Air Shower

Stainless Steel Standard Air Shower

Stainless Steel Standard Air Shower

Stainless Steel Standard Air Shower

Sliding Door Air Shower
