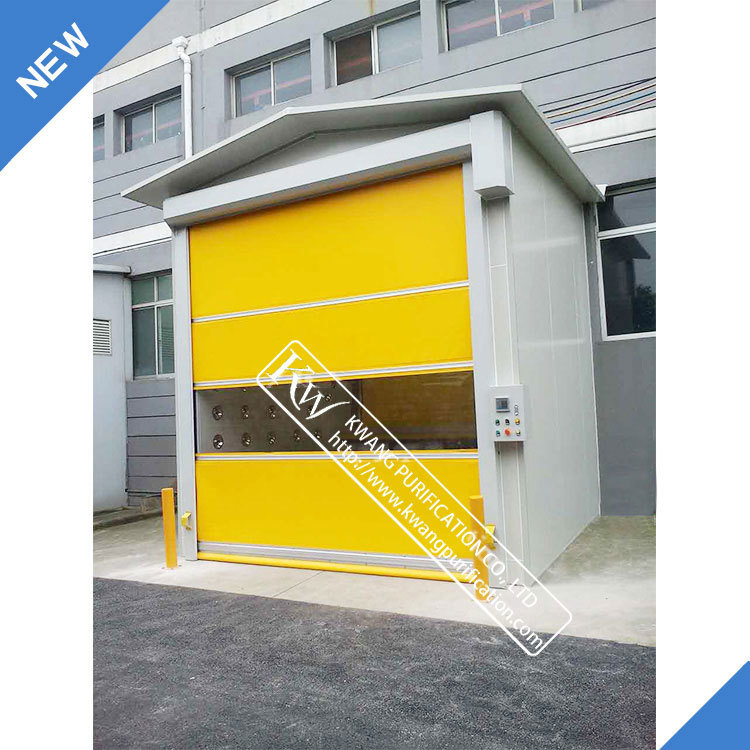

Cargo air shower

Cargo air shower



1.Material: SUS304

2.Outer Size(mm):3650W*3050D*3550H

3.Inner Size(mm):3050W*3050D*3050H

4.Air shower nozzle: mirror stainless steel nozzle,60pcs, embedded installation, distributed on both sides.

5.Purify Fan: special purify centrifugal low noise fan, 6 sets, 1.1KW/Set.

6.Blowing speed: double blow, 25-30m/s, high wind speed to ensure the showing effect.

7.Showing time: EVIEW touch-screen, showing shower time (0-99S adjustable).

8.Control system: PLC system, procedures can be customized according to requirements, with OTS fault display function (fault code is displayed directly on the screen).

9.Control panel: 7.1inch smart ENGISH touch screen, touch-screen with two level password protection measures to prevent any set of employees.

10.Filter efficiency: three level filter, primary and medium prefilter G4 (5um), washable, primary filter is made and punched from the main plate of the air shower room, beautiful and strong, high air permeability.

11.HEPA filter: 99.99% filter efficiency, filter installation is smooth, firm, filter & frame and frame & wall panel is no leakage, medium efficiency filter and frame use EVA seal.

12. Illumination: embedded 7W Philips LED lamp,3pcs, with function of time delay

13. Body main material: inside and outside use 1.2mm SUS304 stainless steel, brushed surface, food and medical special grade.

14. Sealing performance: making fine and beautiful. The assembly structure is adopted, the sealing strip is added at the joint. After the installation of the whole equipment, there is no leakage.

15. Doors: ""JAB"" automatic induction door, JAB transformer. electrical appliances use PLC control program, double doors to achieve electronic interlock.

16.Power supply:380V 50Hz,3Phase

17. Main electrical components: Schneider air switch, and Schneider contactor

18. Sealant: USA ""DOW CORNING"" neutral sealant, environmental protection, no smell.

19. Safety measures: inside and out of the door electric control box installed red ""rush stop"" button, in an emergency, press the button, the system power break, double doors at the same time open for escape.

20.Installation: Customer install at site

21.Warranty: 1 year"
