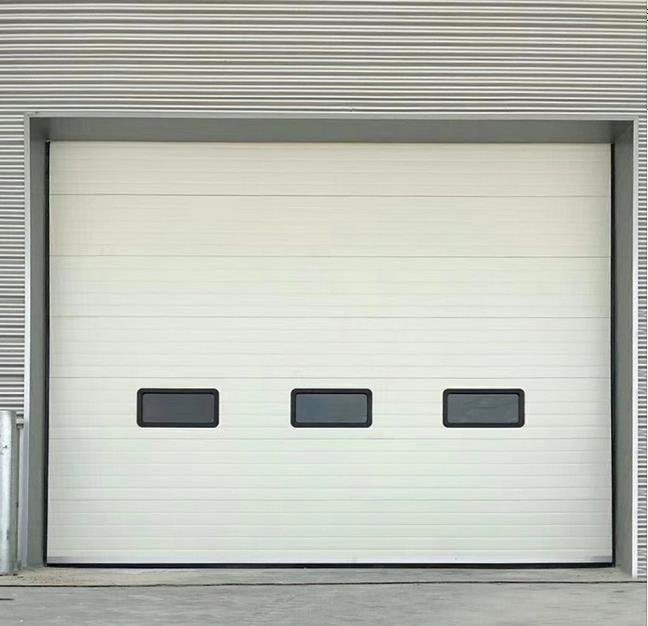

Industrial Sectional Door

Industrial Sectional Door

A sectional industrial door can be useful in a limited space as this type of door only uses the upper part of the room to operate. ComponentsThis type of door is large, made of insulated panels and installed outdoors, with controlling system and necessary safety device. The panels are hinged ...

A sectional industrial door can be useful in a limited space as this type of door only uses the upper part of the room to operate.

Components

This type of door is large, made of insulated panels and installed outdoors, with controlling system and necessary safety device. The panels are hinged and lift up to clear the circulation space. Depending on the space available above the door, the panels will be raised vertically, with a certain inclination or sliding along the ceiling.


Technical

                              Door Size
        Max Width:9000mm   Max Height:8000mm
                  Working Voltage/Frequency
                                  380V/50HZ
                            Motor Power
                              180Watt/380Watt
                    Door Panel Thickness
                                 40mm, 50mm
                   Heat Transfer Coefficient
                                 K≤0.8W/㎡.K
                           Sound Insulation
                                       23db
                     Operating Temperature
                                   -40°C~50°C
                   Wind Pressure Resistance
                            650 N/㎡ with Stiffeners
