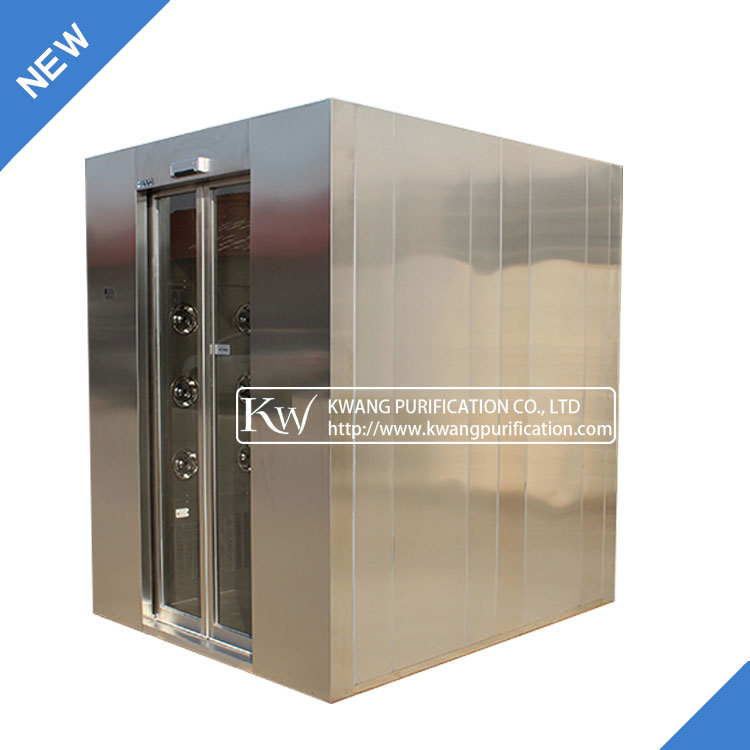

Standard 2-Unit Tunnel Air Shower

Standard 2-Unit Tunnel Air Shower

Air Shower SpecificationsFilter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL challenged, zero probed. Minimum efficiency of 99.99% at .3 microns.Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low wall return to HEPA filter atop unit. Quick relea ...

Air Shower Specifications

Filter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL challenged, zero probed. Minimum efficiency of 99.99% at .3 microns.

Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low wall return to HEPA filter atop unit. Quick release grille.

Airflow: Air velocity at nozzle is minimum 6000fpm.


Construction

Standard construction comes with Powder Coated Steel units.

  • Motor/blower compartment has hinged access panels.

  • Return air plenums are painted.

  • Magnetic Interlock Door System.

  • HEPA filter mounted on exit side of the cleanroom air shower in top section.

  • 360 degree adjustable air nozzles.

  • Anodized aluminum doors with clear acrylic windows.

  • 0-999 second adjustable operation pre-set to 30 seconds.


Electrical & Power Requirements

  • All electrical components UL Approved. 230V or 460V, 3 Ph.

  • Junction box on top for customer power supply.

  • Control circuitry 12V DC & 24 V AC.


Motor/Blower Assembly

  • High efficiency motors to reduce electrical load.

  • Motors thermally protected & self-lubricating.

  • Motors/Blowers are selected to maintain constant required airflow rate up to twice the initial static pressure.

  • Filter/Blower housing has simple plug-in connector.


Lighting

  • Recessed 2 pin fluorescent lighting. 60 ft. candles.


Controls

  • Cleanroom air shower operation controlled by solid sate LCD timer, with tamper-proof closure to ensure selected setting is maintained.

  • Emergency "off" button with audible alarm installed inside the air shower. Built-in relays from motors, locks and timers. Sequential operation initiated by sensor & door magnetic switch.
